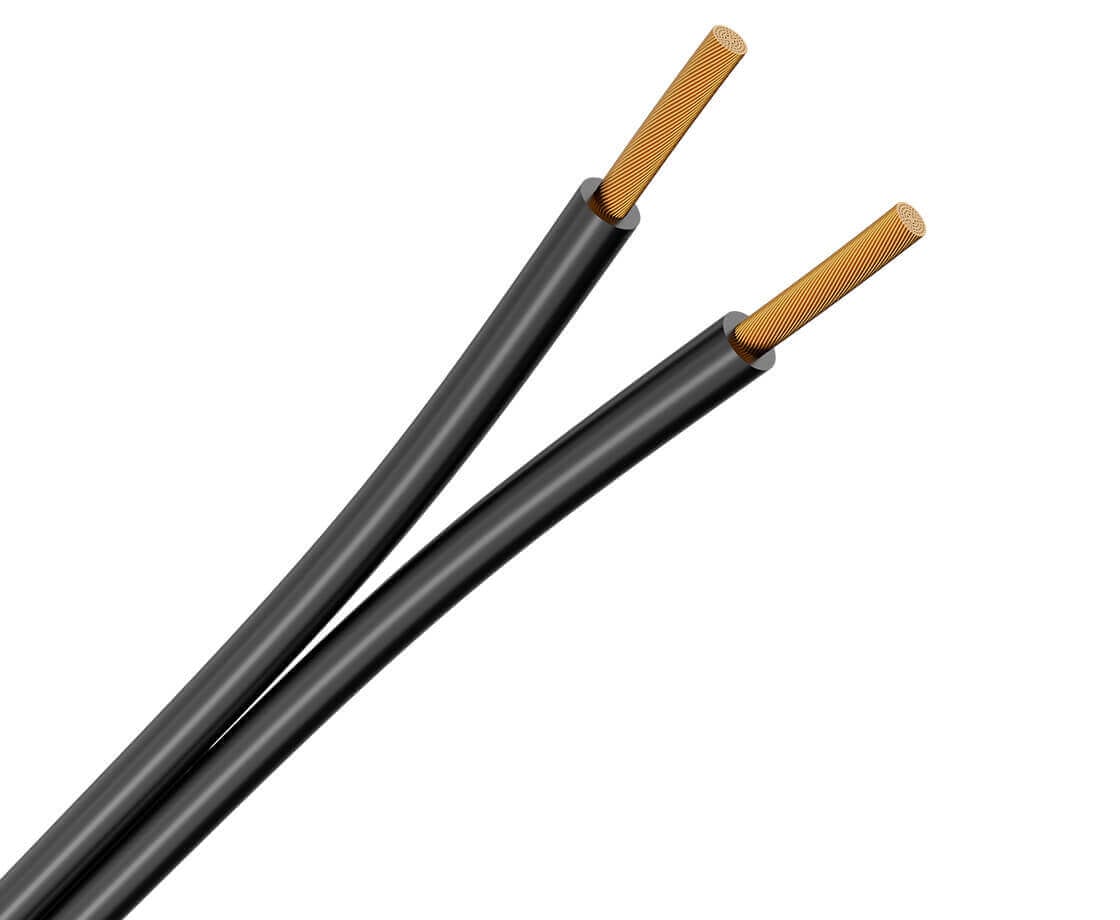

Low Voltage Lighting Cable

R7190d

Regency’s Low Voltage Lighting Cable is manufactured for the purpose of direct burial landscape and lighting applications.

Conductor construction is soft drawn bare copper meeting the requirements of ASTM Specification B-3 and B-8. All gauges have stranded conductors. The insulation is a high quality polyvinylchloride (PVC) for conductor temperatures up to 60 C. The Low Voltage Lighting Cable is a recognized component of Underwriters Laboratories, Inc and is sunlight resistant.

Construction

  • Conductor: Soft drawn bare copper (ASTM Spec. B-3). Stranded (18 awg thru 8 awg)
  • Insulation: Polyvinylchloride (PVC)
  • Temperature: 60 C
  • Voltage: 30 V
DOWNLOAD PDF

Conductor
Size (AWG)StrandingInsulation Thickness (Inches)Copper Wt/MFT
Conductor
Size (AWG)
18
Stranding
16
Insulation Thickness (Inches)
0.045
Copper Wt/MFT
10.04
Conductor
Size (AWG)
16
Stranding
26
Insulation Thickness (Inches)
0.045
Copper Wt/MFT
15.95
Conductor
Size (AWG)
14
Stranding
41
Insulation Thickness (Inches)
0.045
Copper Wt/MFT
24.48
Conductor
Size (AWG)
12
Stranding
65
Insulation Thickness (Inches)
0.045
Copper Wt/MFT
41
Conductor
Size (AWG)
10
Stranding
105
Insulation Thickness (Inches)
0.045
Copper Wt/MFT
64
Conductor
Size (AWG)
8
Stranding
165
Insulation Thickness (Inches)
0.06
Copper Wt/MFT
101.94
