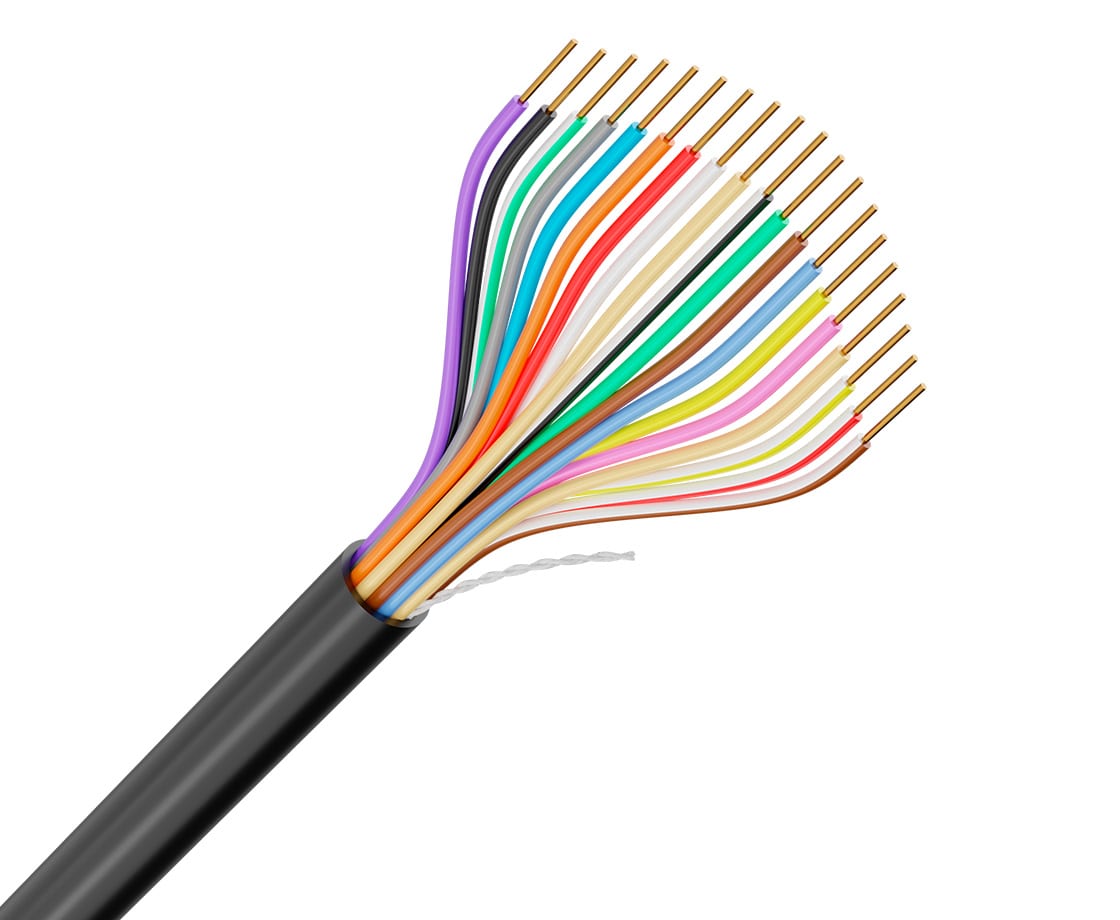

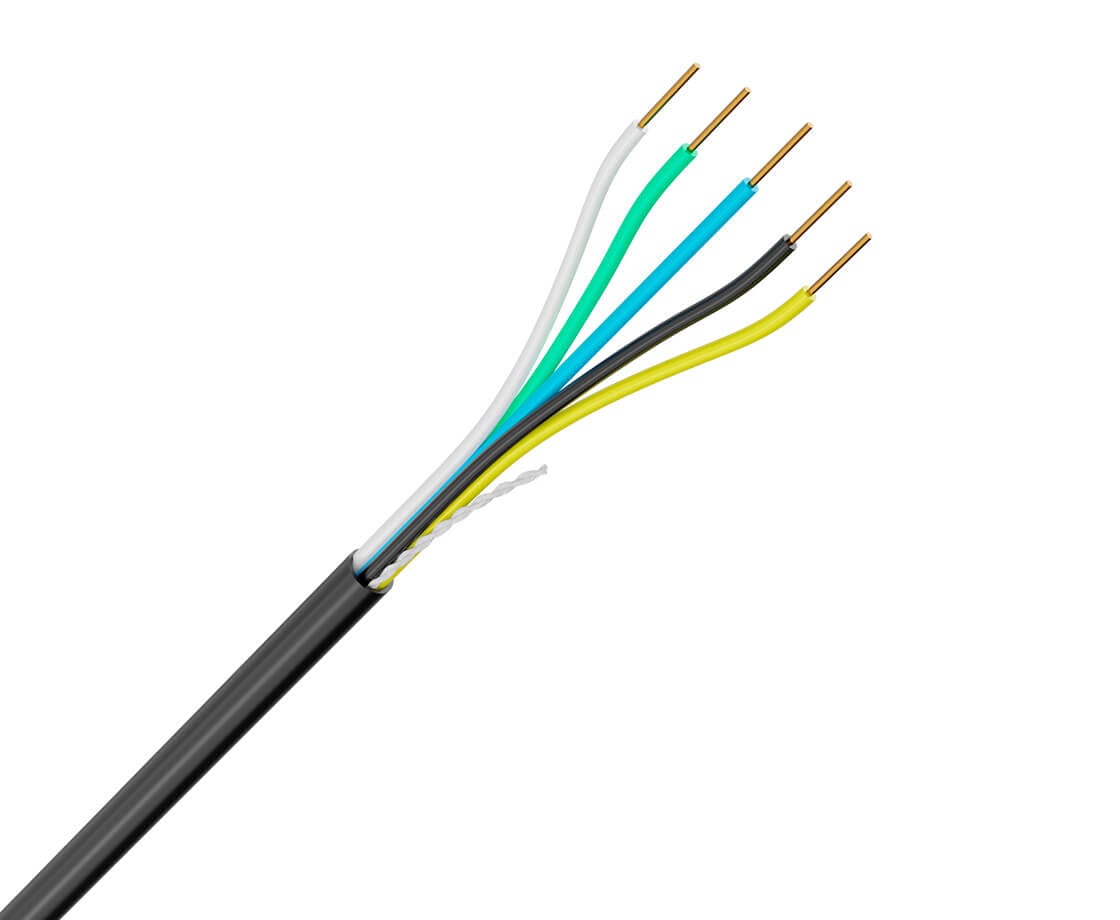

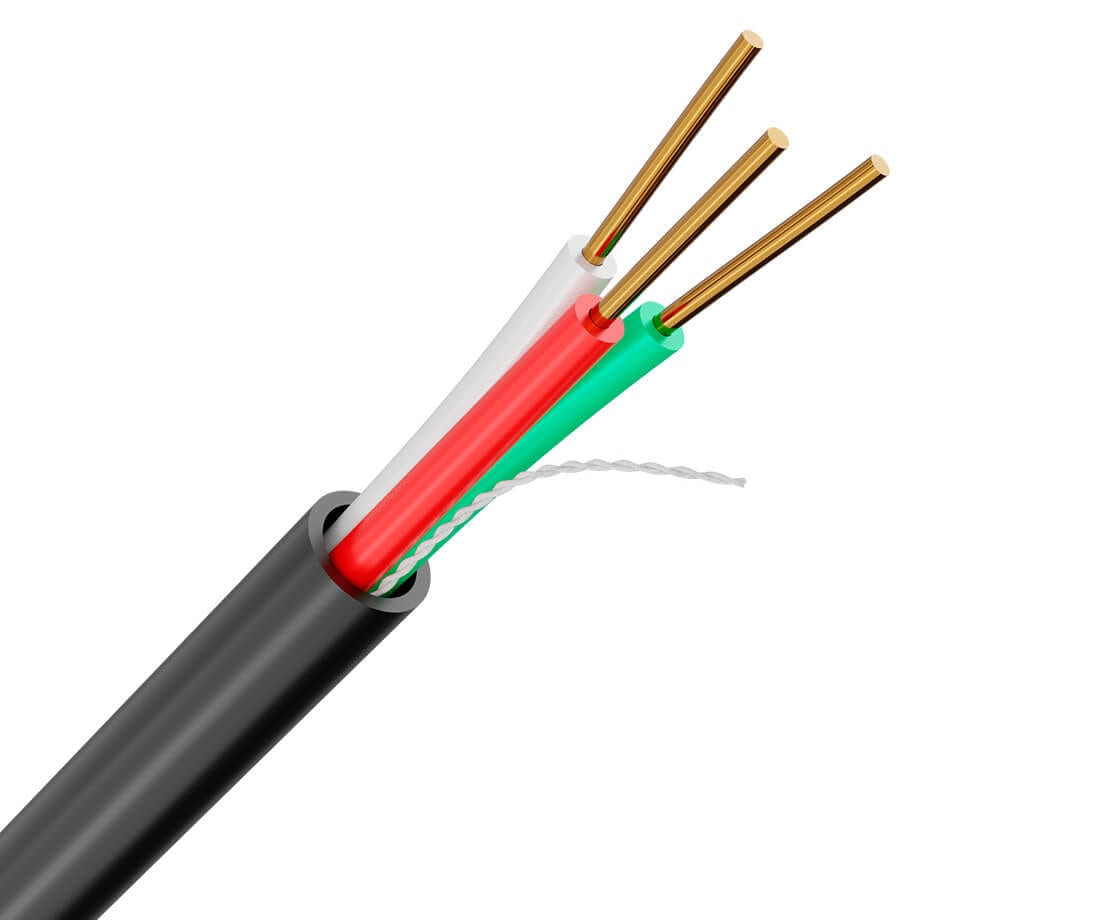

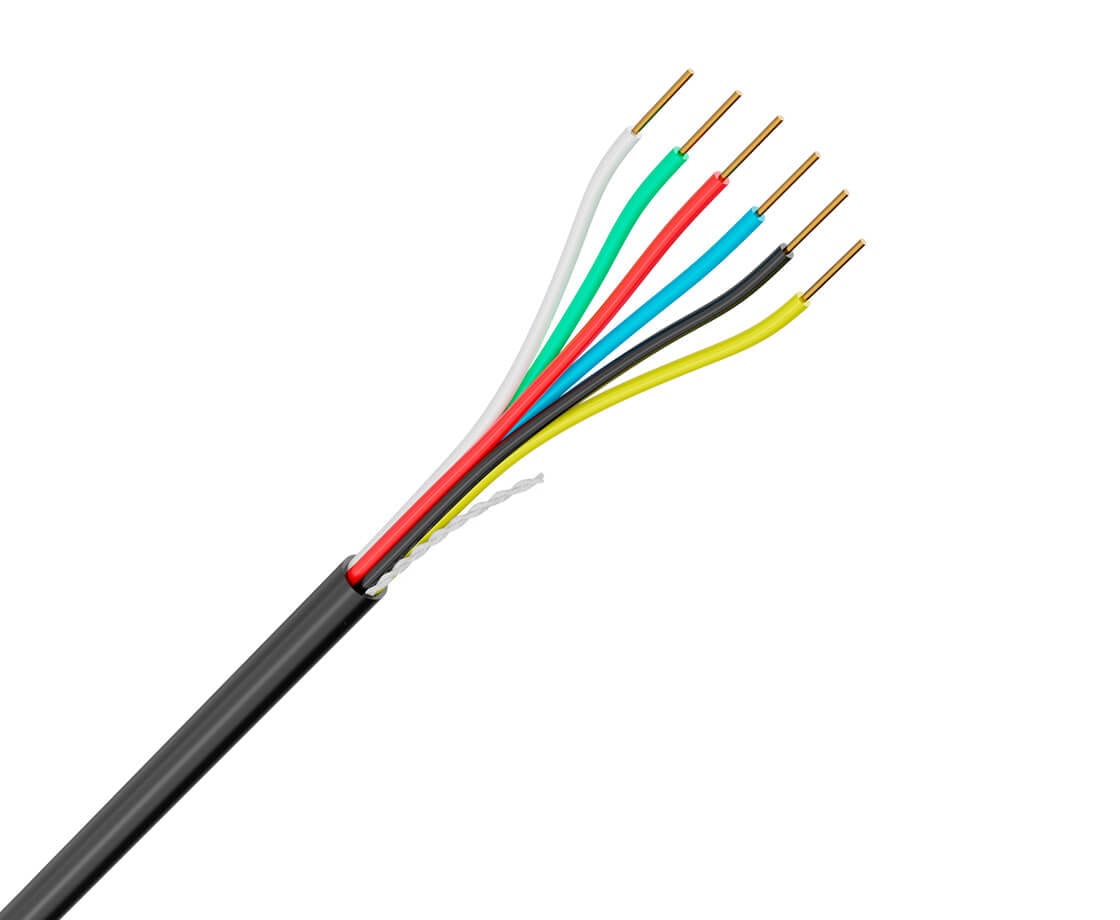

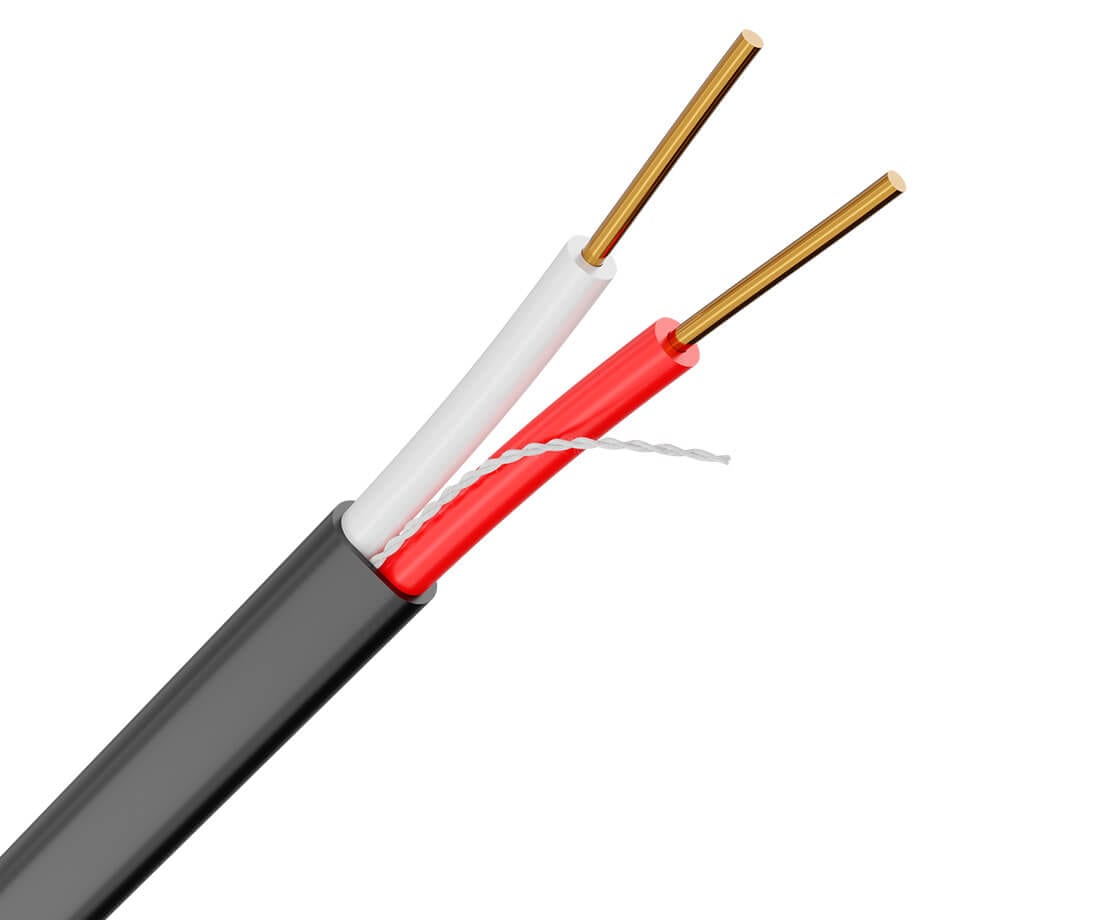

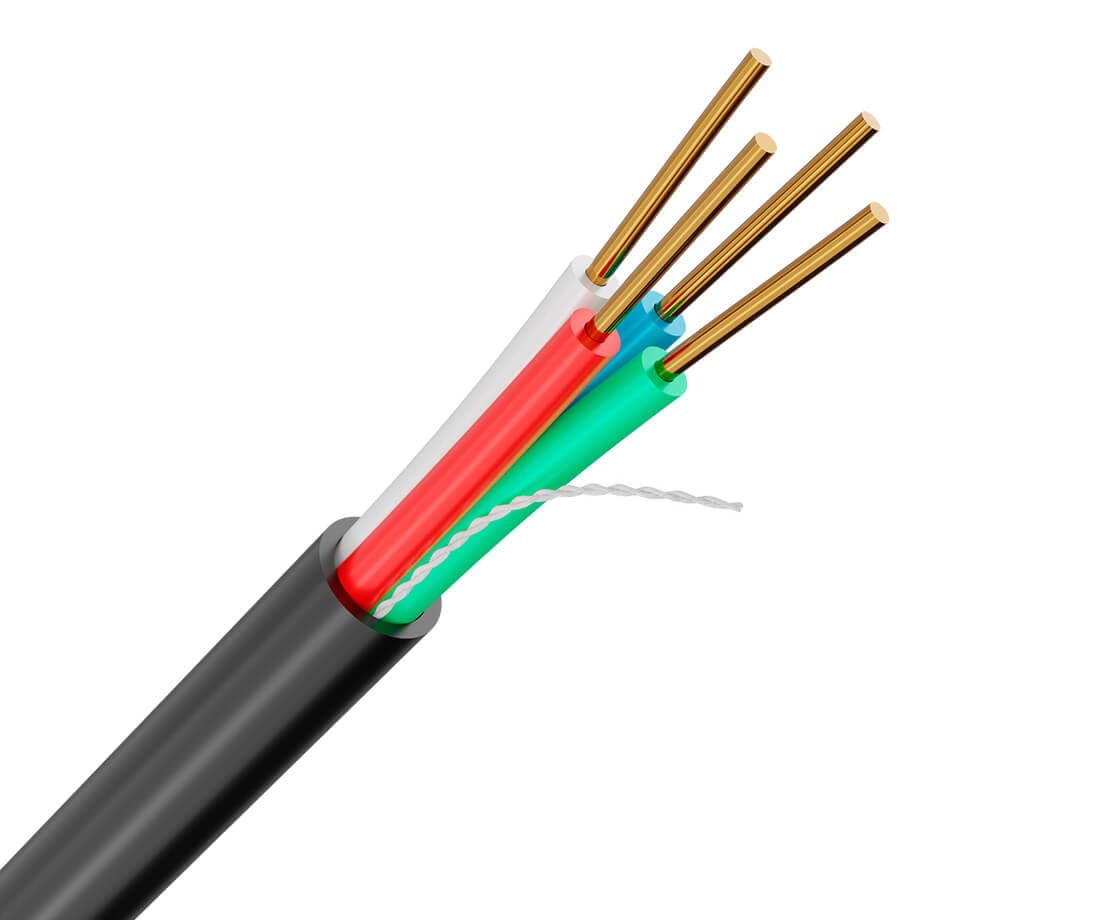

Multi Conductor Control Cable

R7183D

Regency’s Multi Conductor Irrigation Control Cable is manufactured for the purpose of direct burial control cable applications in accordance with the National Electric Code.

Conductor construction is soft drawn bare copper meeting the requirements of ASTM Specification B-3. The 18 awg conductors are solid copper.

The insulation is a color coded high quality polyvinylchloride (PVC) for systems applications of up to 30 volts and conductor temperatures up to 60 C. The outer jacket is low density, high molecular weight polyethylene (PE) with a nylon cord and is sunlight resistant.

The Multi Conductor Irrigation Control Cable is constructed in accordance with Underwriters Laboratories, Inc.

Construction

  • Conductor: Soft drawn bare copper (ASTM Spec. B-3). Solid (14 awg - 10 awg)
  • Insulation: Polyethylene (PE)
  • Temperature: 75º C
  • Voltage: 30 Volts
DOWNLOAD PDF

Conductor
Size (AWG)NumberInsulation Thickness (Inches)Standard Packaging (ft)Outer Jacket (Inches)
Conductor
Size (AWG)
18
Number
2
Insulation Thickness (Inches)
0.015
Standard Packaging (ft)
1x250’, 1x500’, 1x1000’, 1x2500’
Outer Jacket (Inches)
0.03
Conductor
Size (AWG)
18
Number
3
Insulation Thickness (Inches)
0.015
Standard Packaging (ft)
1x250’, 1x500’, 1x1000’, 1x2500’
Outer Jacket (Inches)
0.03
Conductor
Size (AWG)
18
Number
4
Insulation Thickness (Inches)
0.015
Standard Packaging (ft)
1x250’, 1x500’, 1x1000’, 1x2500’
Outer Jacket (Inches)
0.03
Conductor
Size (AWG)
18
Number
5
Insulation Thickness (Inches)
0.015
Standard Packaging (ft)
1x250’, 1x500’, 1x1000’, 1x2500’
Outer Jacket (Inches)
0.03
Conductor
Size (AWG)
18
Number
6
Insulation Thickness (Inches)
0.015
Standard Packaging (ft)
1x250’, 1x500’, 1x1000’, 1x2500’
Outer Jacket (Inches)
0.03

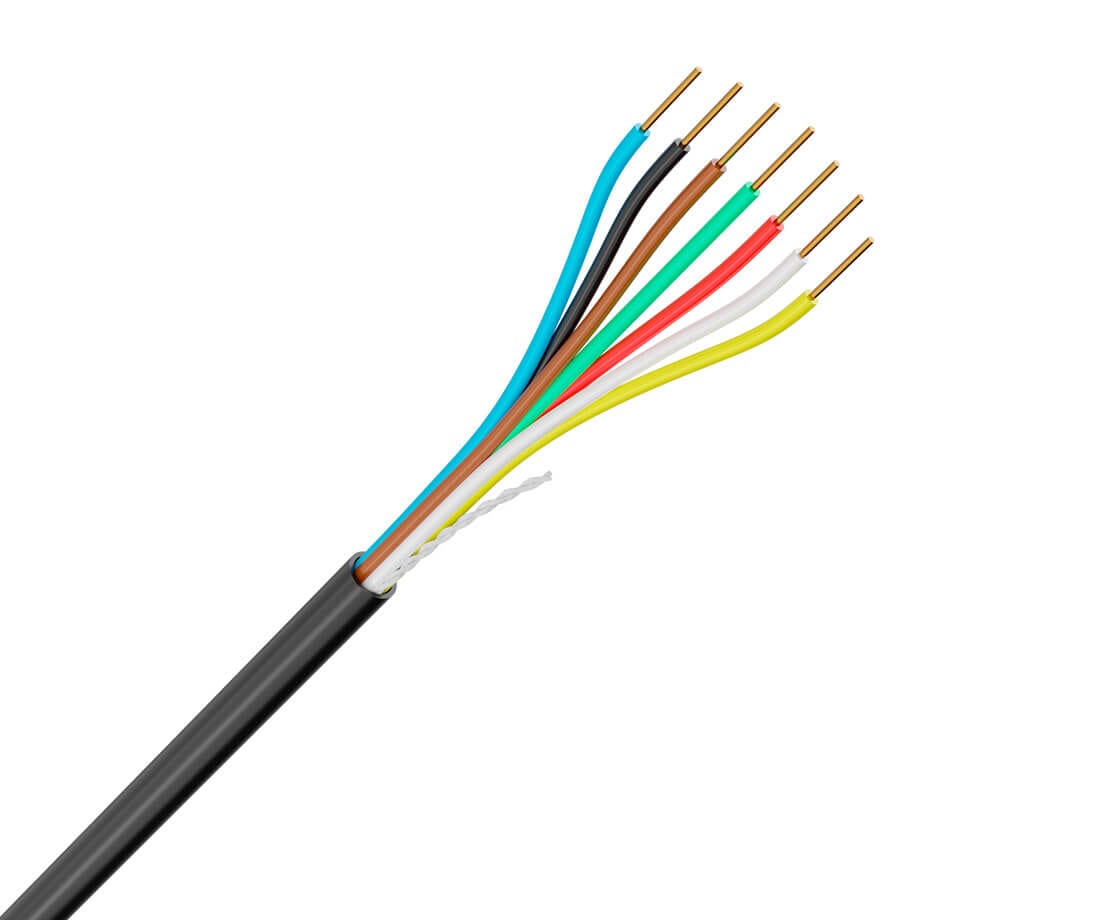

Conductor
Size (AWG)
18
Number
7
Insulation Thickness (Inches)
0.015
Standard Packaging (ft)
1x250’, 1x500’, 1x1000’, 1x2500’
Outer Jacket (Inches)
0.03

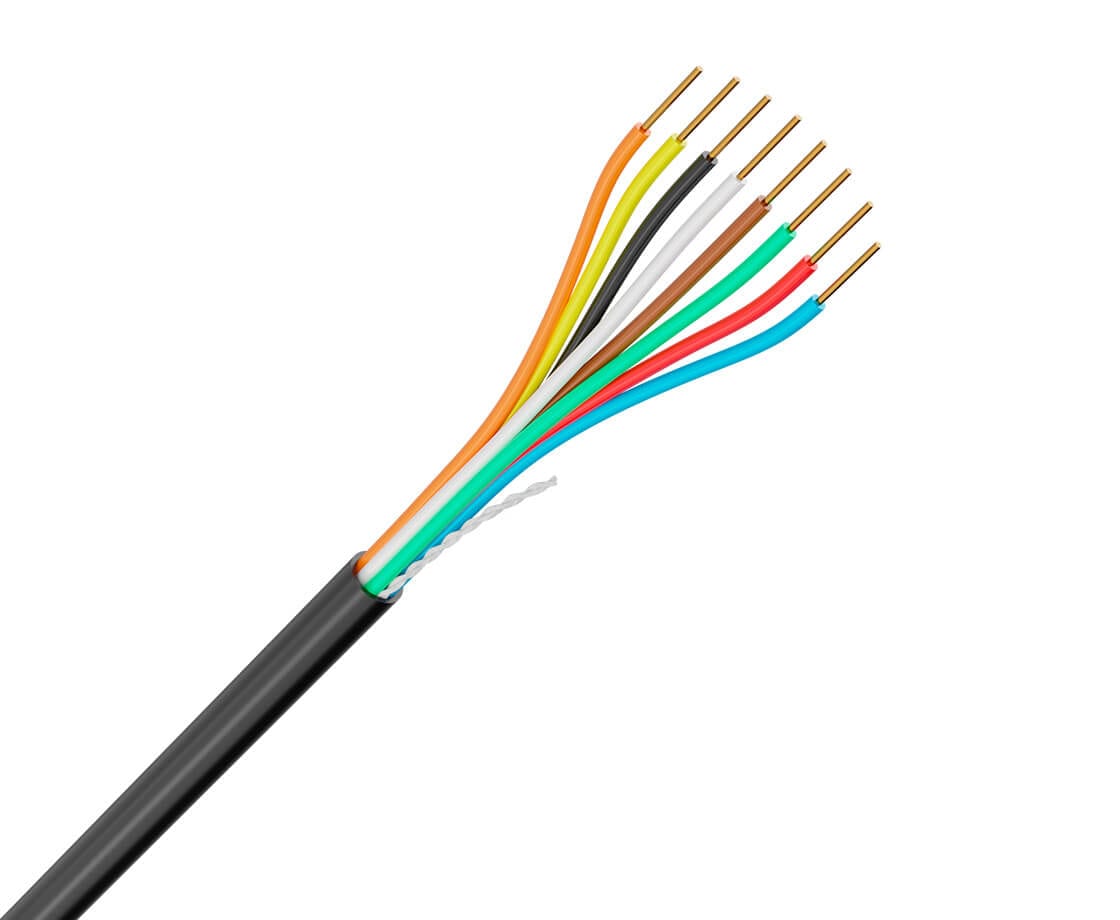

Conductor
Size (AWG)
18
Number
8
Insulation Thickness (Inches)
0.015
Standard Packaging (ft)
1x250’, 1x500’, 1x1000’, 1x2500’
Outer Jacket (Inches)
0.03

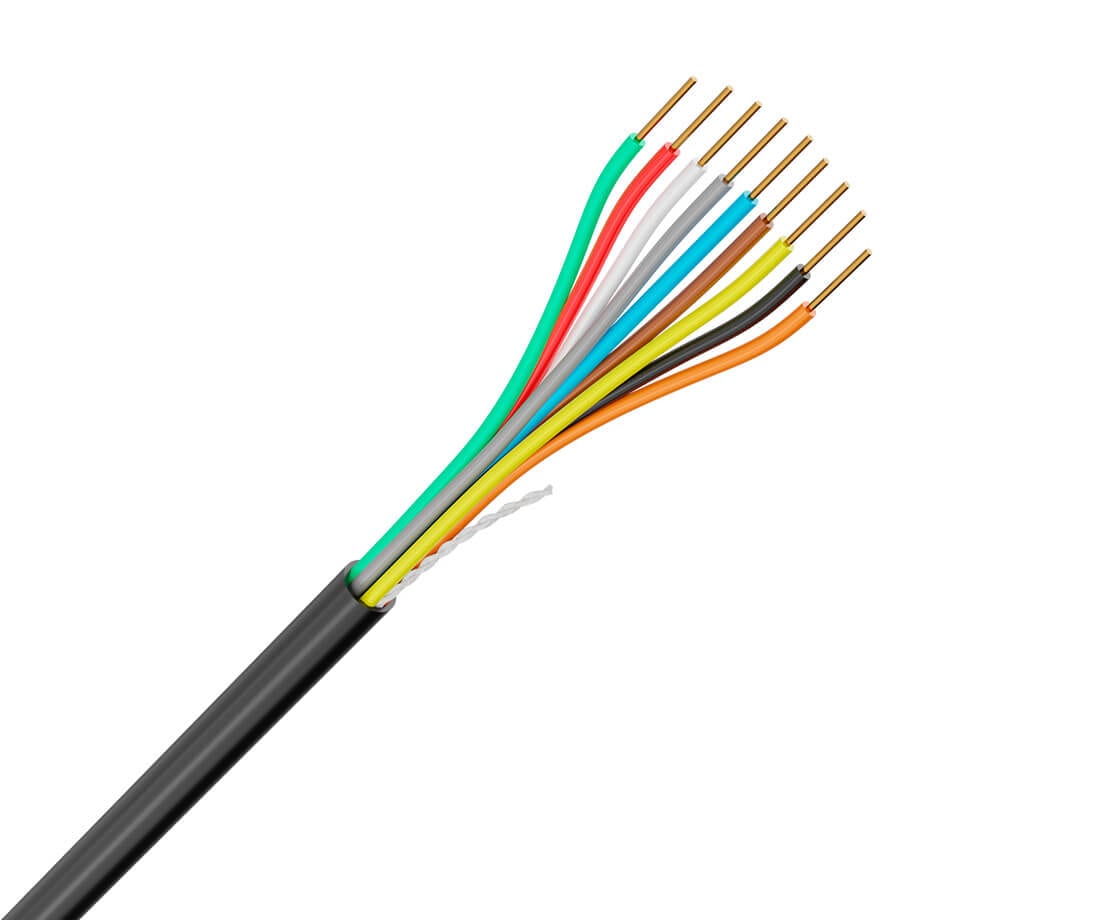

Conductor
Size (AWG)
18
Number
9
Insulation Thickness (Inches)
0.015
Standard Packaging (ft)
1x250’, 1x500’, 1x1000’, 1x2500’
Outer Jacket (Inches)
0.03

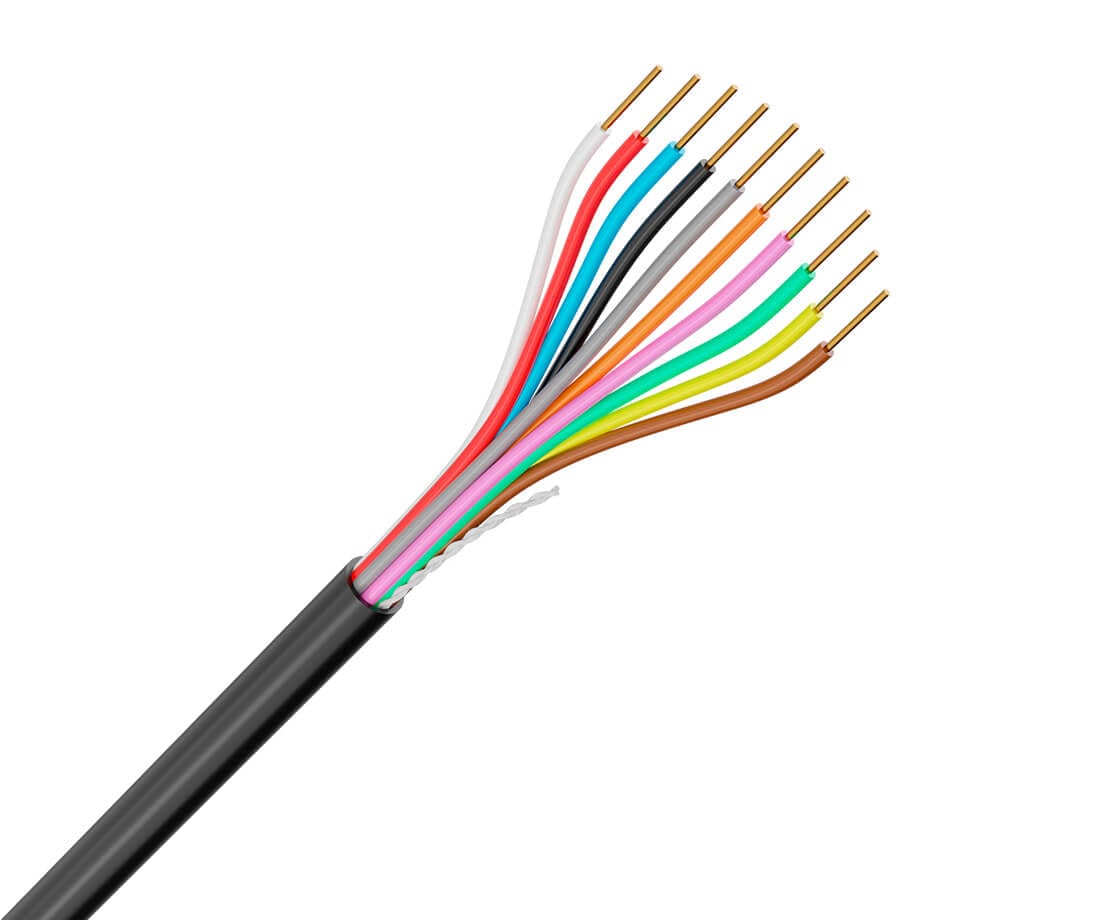

Conductor
Size (AWG)
18
Number
10
Insulation Thickness (Inches)
0.015
Standard Packaging (ft)
1x250’, 1x500’, 1x1000’, 1x2500’
Outer Jacket (Inches)
0.03
Conductor
Size (AWG)
18
Number
11
Insulation Thickness (Inches)
0.015
Standard Packaging (ft)
1x250’, 1x500’, 1x1000’, 1x2500’
Outer Jacket (Inches)
0.03

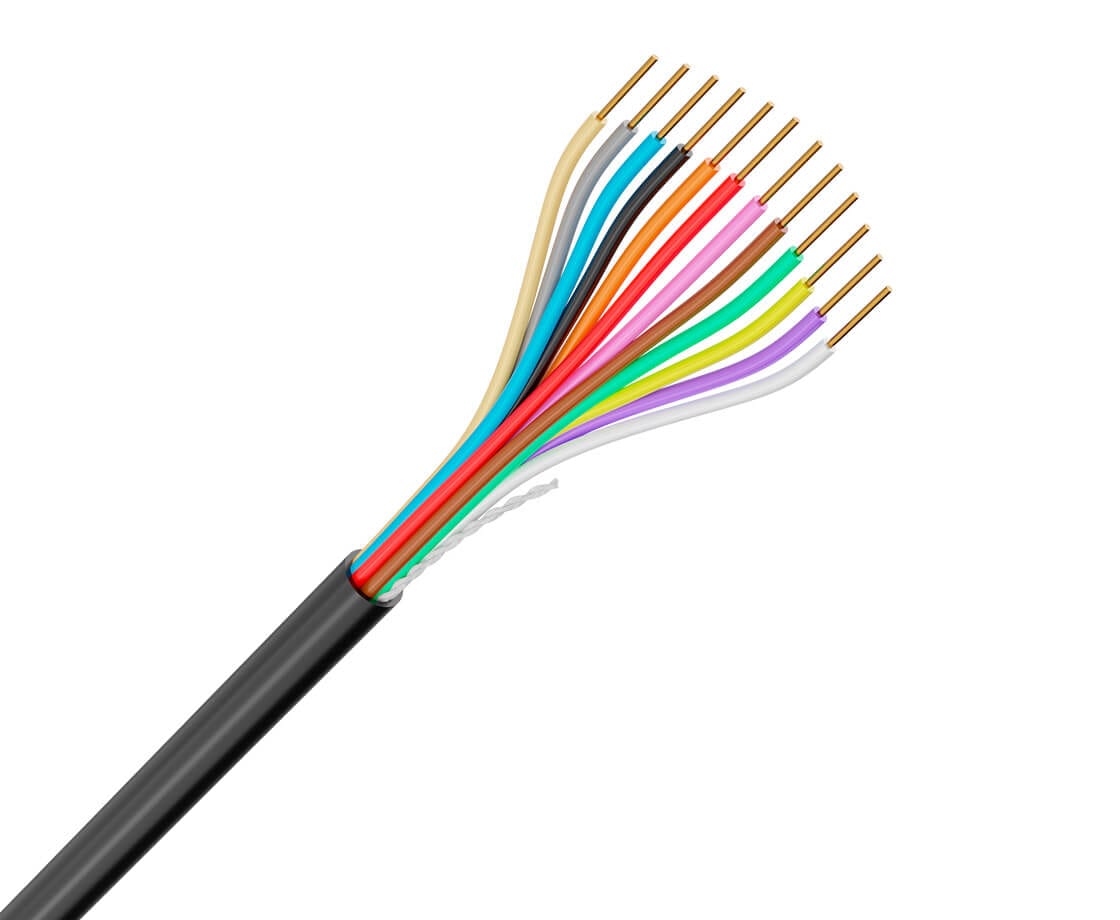

Conductor
Size (AWG)
18
Number
12
Insulation Thickness (Inches)
0.015
Standard Packaging (ft)
1x250’, 1x500’, 1x1000’, 1x2500’
Outer Jacket (Inches)
0.03

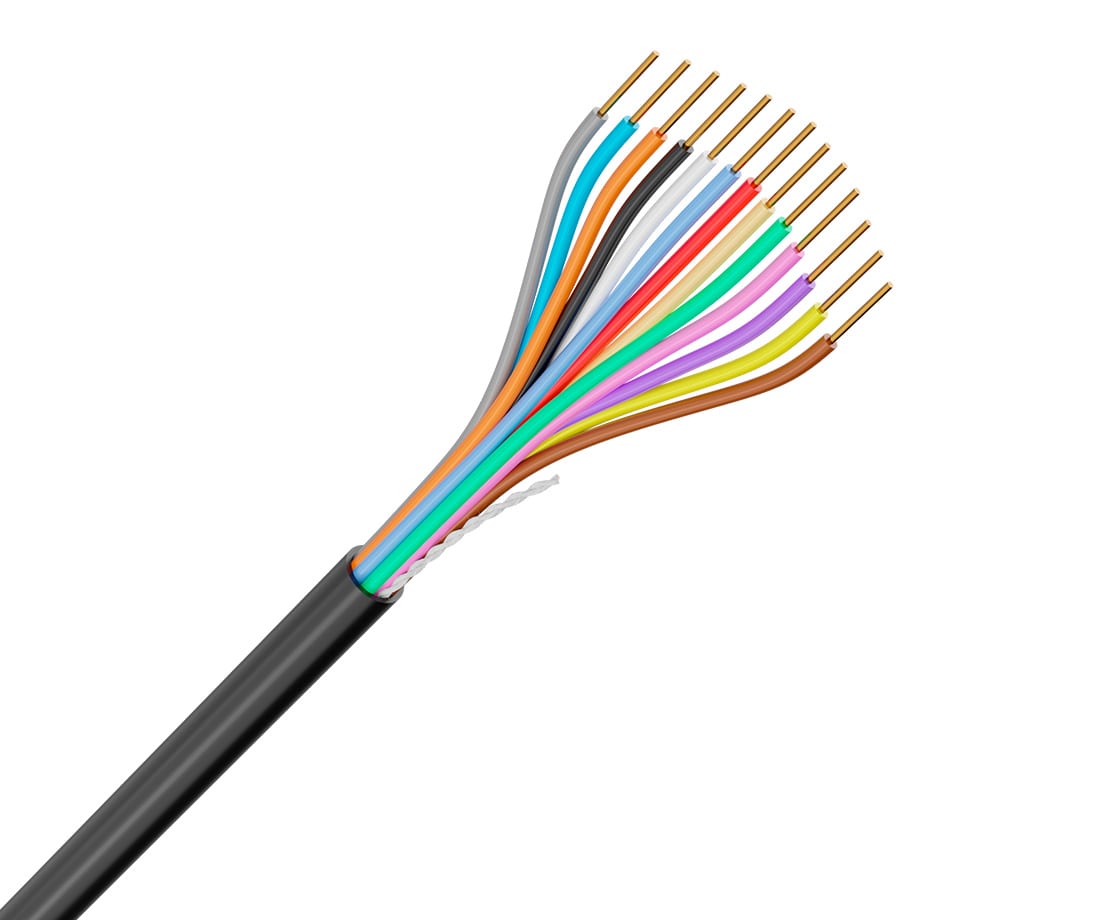

Conductor
Size (AWG)
18
Number
13
Insulation Thickness (Inches)
0.015
Standard Packaging (ft)
1x250’, 1x500’, 1x1000’, 1x2500’
Outer Jacket (Inches)
0.03

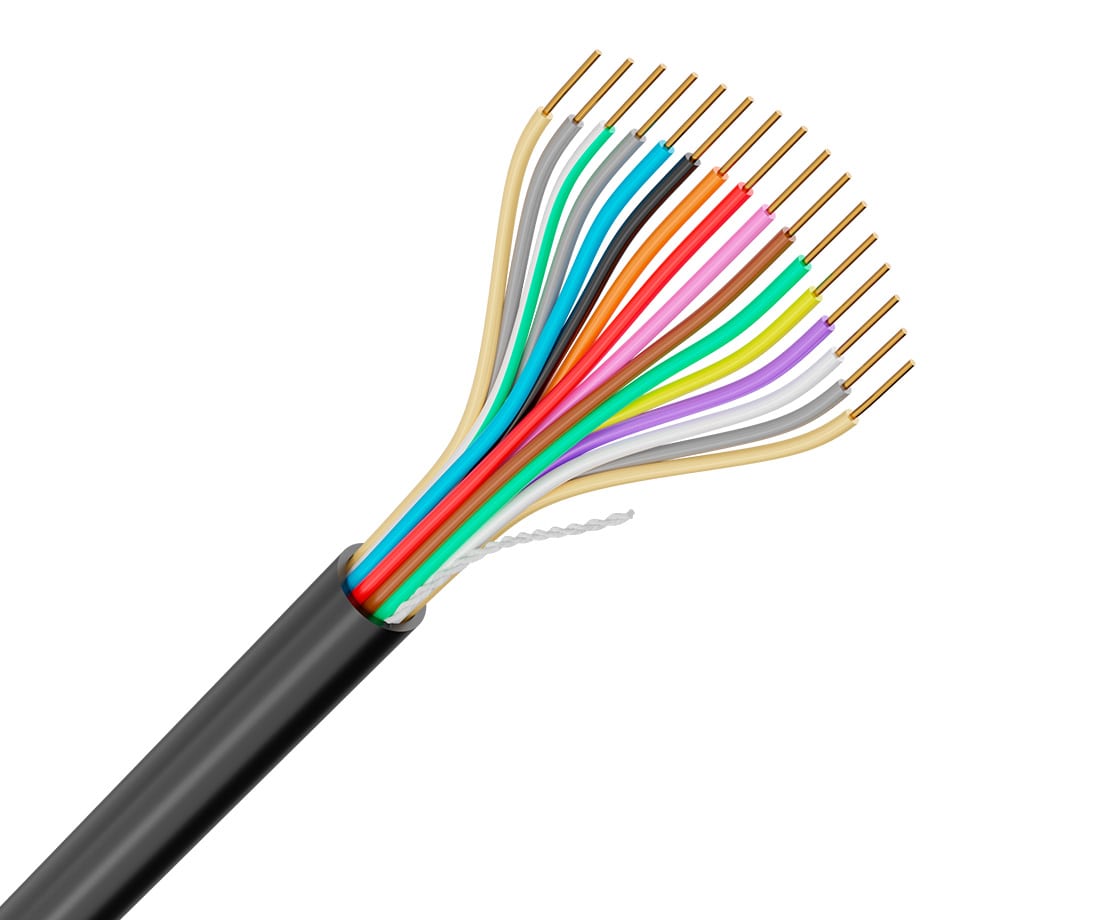

Conductor
Size (AWG)
18
Number
16
Insulation Thickness (Inches)
0.015
Standard Packaging (ft)
1x250’, 1x500’, 1x1000’
Outer Jacket (Inches)
0.03
Conductor
Size (AWG)
18
Number
19
Insulation Thickness (Inches)
0.015
Standard Packaging (ft)
1x250’, 1x500’, 1x1000’
Outer Jacket (Inches)
0.03

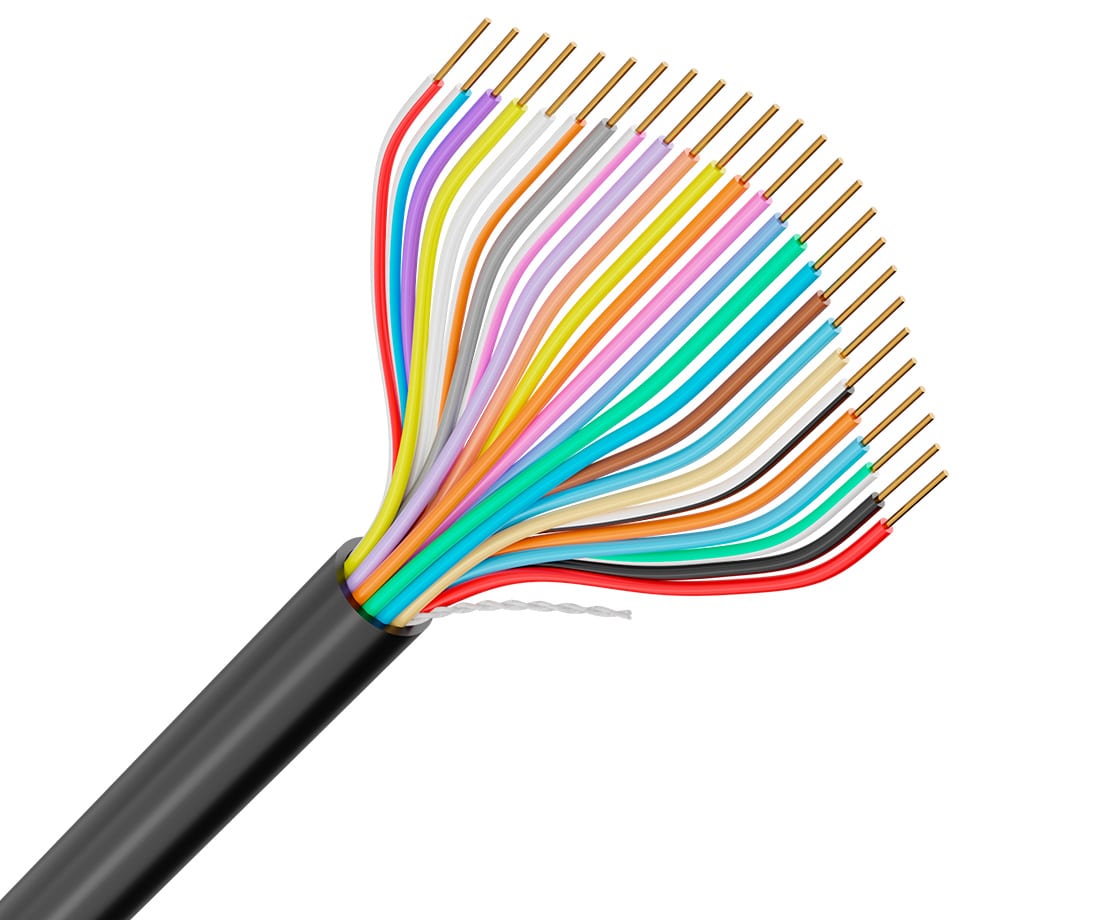

Conductor
Size (AWG)
18
Number
25
Insulation Thickness (Inches)
0.015
Standard Packaging (ft)
1x250’, 1x500’, 1x1000’
Outer Jacket (Inches)
0.03
