Flat Heavy Duty

TYPE – THW, footprint every two feet, 500-0, 1000-0, UL Standard 83. Maximum conductor operating temperatures of –25 C to 75 C in circuits not exceeding 600 volts and is sunlight resistant.

Construction

  • Conductor: Stranded soft annealed copper
  • Insulation: Thermoplastic polyvinyl chloride (PVC)
  • Color Coding: Black, red, yellow, green (ground)

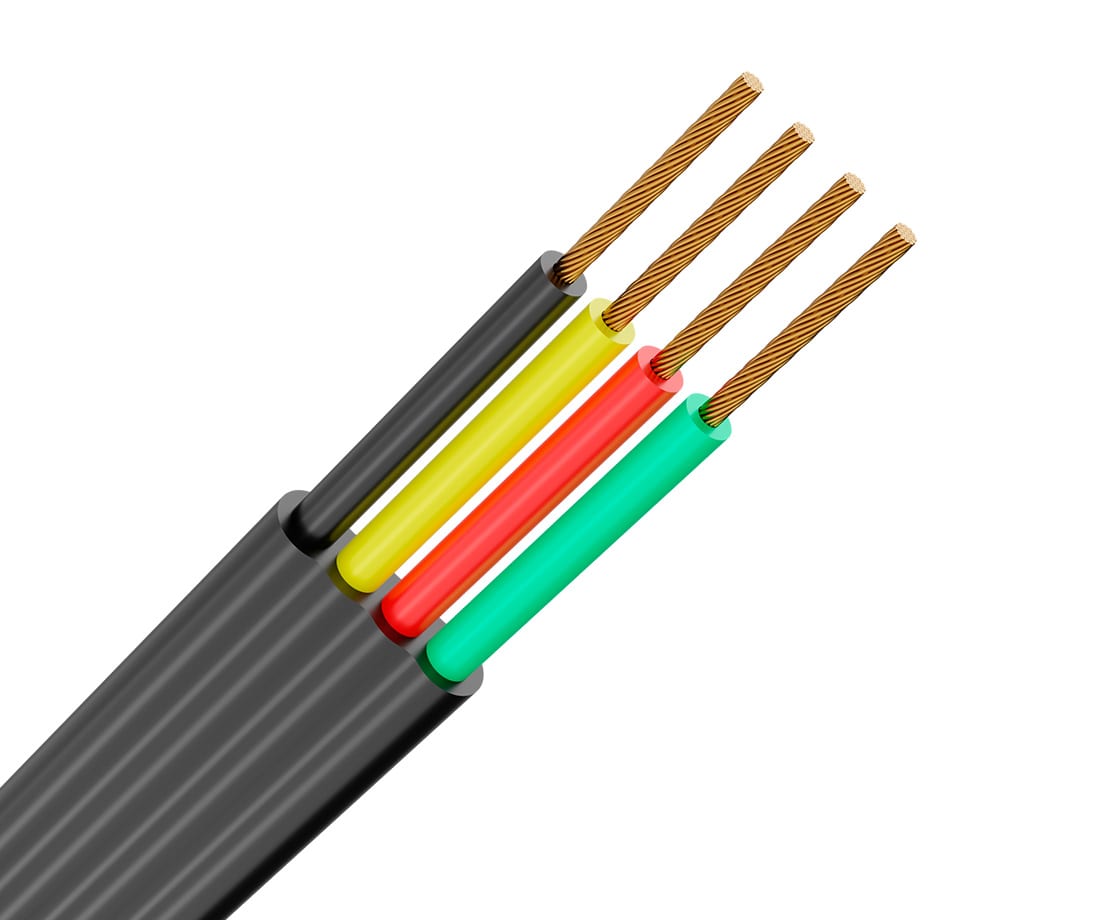

  • Assembly: Insulated conductors, including the ground conductor, are assembled flat and parallel
  • Jacket: Black thermoplastic polyvinyl chloride (PVC) extruded over the parallel conductors
  • Temperature: 75º C
  • Voltage: 600 Volts
DOWNLOAD PDF

ConductorReels
Size (AWG)StrandingNumber of ConductorsGroundingPart NumberApprox. Ship Wt./MFTInsulation Inner Thickness
(Inches)
Jacket Thickness (PVC)Outside Dimensions (Inches)500'1000'Color Options
Conductor
Size (AWG)
14
Stranding
19
Number of Conductors
2
Grounding
with #14 Ground
Part Number
PCH14/2G
Approx. Ship Wt./MFT
104
Insulation Inner Thickness (Inches)
0.045
Jacket Thickness (PVC)
0.045
Outside Dimensions (Inches)
.191x.513
Reels
500'
RW15-2
1000'
RW17
Color Options
Conductor
Size (AWG)
14
Stranding
19
Number of Conductors
3
Grounding
with #14 Ground
Part Number
PCH14/3G
Approx. Ship Wt./MFT
124
Insulation Inner Thickness (Inches)
0.045
Jacket Thickness (PVC)
0.045
Outside Dimensions (Inches)
.191x.674
Reels
500'
RW15-2
1000'
RW23
Color Options
Conductor
Size (AWG)
12
Stranding
19
Number of Conductors
2
Grounding
with #12 Ground
Part Number
PCH12/2G
Approx. Ship Wt./MFT
131
Insulation Inner Thickness (Inches)
0.045
Jacket Thickness (PVC)
0.045
Outside Dimensions (Inches)
.210x.570
Reels
500'
RW15-2
1000'
RW23
Color Options
Conductor
Size (AWG)
12
Stranding
19
Number of Conductors
3
Grounding
with #12 Ground
Part Number
PCH12/3G
Approx. Ship Wt./MFT
161
Insulation Inner Thickness (Inches)
0.045
Jacket Thickness (PVC)
0.045
Outside Dimensions (Inches)
.210x.750
Reels
500'
RW17
1000'
RW23
Color Options
Conductor
Size (AWG)
10
Stranding
19
Number of Conductors
2
Grounding
with #10 Ground
Part Number
PCH10/2G
Approx. Ship Wt./MFT
185
Insulation Inner Thickness (Inches)
0.045
Jacket Thickness (PVC)
0.045
Outside Dimensions (Inches)
.233x.639
Reels
500'
RW15-2
1000'
RW24
Color Options
Conductor
Size (AWG)
10
Stranding
19
Number of Conductors
3
Grounding
with #10Ground
Part Number
PCH10/3G
Approx. Ship Wt./MFT
246
Insulation Inner Thickness (Inches)
0.045
Jacket Thickness (PVC)
0.045
Outside Dimensions (Inches)
.233x.842
Reels
500'
RW23
1000'
RW24
Color Options
Conductor
Size (AWG)
8
Stranding
19
Number of Conductors
2
Grounding
with #10 Ground
Part Number
PCH08/2G
Approx. Ship Wt./MFT
260
Insulation Inner Thickness (Inches)
0.045
Jacket Thickness (PVC)
0.045
Outside Dimensions (Inches)
.323x.849
Reels
500'
RW17
1000'
RW24
Color Options
Conductor
Size (AWG)
8
Stranding
19
Number of Conductors
3
Grounding
with #10 Ground
Part Number
PCH08/3G
Approx. Ship Wt./MFT
342
Insulation Inner Thickness (Inches)
0.045
Jacket Thickness (PVC)
0.045
Outside Dimensions (Inches)
.323x1.113
Reels
500'
RW23
1000'
RW27
Color Options
Conductor
Size (AWG)
6
Stranding
19
Number of Conductors
3
Grounding
with #8 Ground
Part Number
PCH06/3G
Approx. Ship Wt./MFT
525
Insulation Inner Thickness (Inches)
0.06
Jacket Thickness (PVC)
0.045
Outside Dimensions (Inches)
.359x1.256
Reels
500'
RW27
1000'
RW30
Color Options
Conductor
Size (AWG)
4
Stranding
19
Number of Conductors
3
Grounding
with #8 Ground
Part Number
PCH04/3G
Approx. Ship Wt./MFT
706
Insulation Inner Thickness (Inches)
0.06
Jacket Thickness (PVC)
0.045
Outside Dimensions (Inches)
.406x1.444
Reels
500'
RW27
1000'
RW32
Color Options
Conductor
Size (AWG)
2
Stranding
19
Number of Conductors
3
Grounding
with #6 Ground
Part Number
PCH02/3G
Approx. Ship Wt./MFT
1059
Insulation Inner Thickness (Inches)
0.06
Jacket Thickness (PVC)
0.045
Outside Dimensions (Inches)
.466x1.684
Reels
500'
RW32
1000'
RW40
Color Options
Conductor
Size (AWG)
1/0
Stranding
19
Number of Conductors
3
Grounding
with #6 Ground
Part Number
PCH1A/3G
Approx. Ship Wt./MFT
1721
Insulation Inner Thickness (Inches)
0.08
Jacket Thickness (PVC)
0.060
Outside Dimensions (Inches)
.660x1990
Reels
500'
RW37
1000'
RW42
Color Options
Conductor
Size (AWG)
2/0
Stranding
19
Number of Conductors
3
Grounding
with #6 Ground
Part Number
PCH1A/3G
Approx. Ship Wt./MFT
2000
Insulation Inner Thickness (Inches)
0.08
Jacket Thickness (PVC)
0.060
Outside Dimensions (Inches)
.700x2.120
Reels
500'
RW37
1000'
RW42
Color Options
Conductor
Size (AWG)
3/0
Stranding
19
Number of Conductors
3
Grounding
with #4 Ground
Part Number
PCH30/3G
Approx. Ship Wt./MFT
2506
Insulation Inner Thickness (Inches)
0.08
Jacket Thickness (PVC)
0.060
Outside Dimensions (Inches)
.734x2.314
Reels
500'
RW37
1000'
RW54
Color Options
Conductor
Size (AWG)
4/0
Stranding
19
Number of Conductors
3
Grounding
with #4 Ground
Part Number
PCH40/3G
Approx. Ship Wt./MFT
3000
Insulation Inner Thickness (Inches)
0.08
Jacket Thickness (PVC)
0.060
Outside Dimensions (Inches)
.95x2.5
Reels
500'
RW42
1000'
RW60
Color Options
