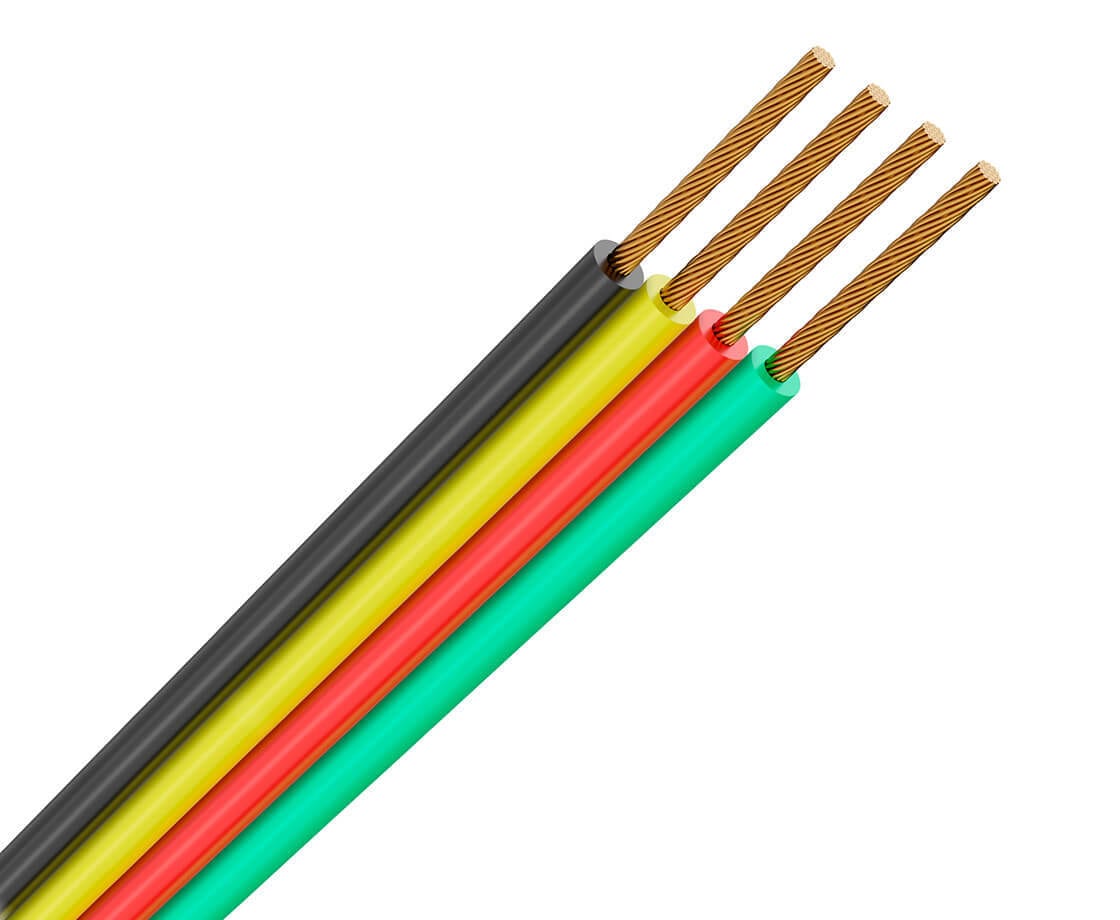

Multi-Color Flat

TYPE – THW, UL Standard 83, footprint every two feet, 500-0, 1000-0. Maximum conductor operating temperatures of –25 C to 75 C in circuits not exceeding 600 volts and is sunlight resistant.

Construction

  • Conductor: Stranded soft annealed copper
  • Insulation: Thermoplastic polyvinyl chloride (PVC)
  • Color Coding: black, red, yellow, green (ground)
  • Assembly: Insulated conductors, including the ground conductor, are assembled flat and parallel
  • Temperature: 75º C
  • Voltage: 600 Volts
DOWNLOAD PDF

ConductorReels
Size (AWG)StrandingNumber of ConductorsPart NumbersApprox. Ship Wt./MFTInsulation Inner Thickness
(Inches)
Outside Dimensions (Inches)500'1000'
Conductor
Size (AWG)
14
Stranding
19
Number of Conductors
2 w/#14 Ground
Part Numbers
PCF14/2G
Approx. Ship Wt./MFT
68
Insulation Inner Thickness (Inches)
0.045
Outside Dimensions (Inches)
.163x.489
Reels
500'
RW12-2
1000'
RW15-2
Conductor
Size (AWG)
14
Stranding
19
Number of Conductors
3 w/#14 Ground
Part Numbers
PCF14/3G
Approx. Ship Wt./MFT
91
Insulation Inner Thickness (Inches)
0.045
Outside Dimensions (Inches)
.163x.652
Reels
500'
RW12-2
1000'
RW15-2
Conductor
Size (AWG)
12
Stranding
19
Number of Conductors
2 w/#12 Ground
Part Numbers
PCF12/2G
Approx. Ship Wt./MFT
96
Insulation Inner Thickness (Inches)
0.045
Outside Dimensions (Inches)
.182x.546
Reels
500'
RW12-2
1000'
RW15-2
Conductor
Size (AWG)
12
Stranding
19
Number of Conductors
3 w/#12 Ground
Part Numbers
PCF12/3G
Approx. Ship Wt./MFT
128
Insulation Inner Thickness (Inches)
0.045
Outside Dimensions (Inches)
.182x.728
Reels
500'
RW15-2
1000'
RW17
Conductor
Size (AWG)
10
Stranding
19
Number of Conductors
2 w/#10 Ground
Part Numbers
PCF10/2G
Approx. Ship Wt./MFT
137
Insulation Inner Thickness (Inches)
0.045
Outside Dimensions (Inches)
.205x.615
Reels
500'
RW15-2
1000'
RW17
Conductor
Size (AWG)
10
Stranding
19
Number of Conductors
3 w/#10 Ground
Part Numbers
PCF10/3
Approx. Ship Wt./MFT
182
Insulation Inner Thickness (Inches)
0.045
Outside Dimensions (Inches)
.205x.615
Reels
500'
RW15-2
1000'
RW17
Conductor
Size (AWG)
8
Stranding
19
Number of Conductors
3 w/#10 Ground
Part Numbers
PCF08/3G
Approx. Ship Wt./MFT
280
Insulation Inner Thickness (Inches)
0.060
Outside Dimensions (Inches)
.265x1.000
Reels
500'
RW20
1000'
RW27
Conductor
Size (AWG)
6
Stranding
19
Number of Conductors
3 w/#8 Ground
Part Numbers
PCF06/3G
Approx. Ship Wt./MFT
326
Insulation Inner Thickness (Inches)
0.060
Outside Dimensions (Inches)
.301x1.168
Reels
500'
RW24
1000'
RW27
Conductor
Size (AWG)
4
Stranding
19
Number of Conductors
3 w/#8 Ground
Part Numbers
PCF04/3G
Approx. Ship Wt./MFT
580
Insulation Inner Thickness (Inches)
0.060
Outside Dimensions (Inches)
.348x1.309
Reels
500'
RW24
1000'
RW32
Conductor
Size (AWG)
12
Stranding
19
Number of Conductors
3 w/o Ground
Part Numbers
PCF12/3
Approx. Ship Wt./MFT
96
Insulation Inner Thickness (Inches)
.045
Outside Dimensions (Inches)
.182x.546
Reels
500'
RW12-2
1000'
RW15-2
Conductor
Size (AWG)
10
Stranding
19
Number of Conductors
3 w/o Ground
Part Numbers
PCF10/3
Approx. Ship Wt./MFT
137
Insulation Inner Thickness (Inches)
.045
Outside Dimensions (Inches)
.205x.615
Reels
500'
RW15-2
1000'
RW17
