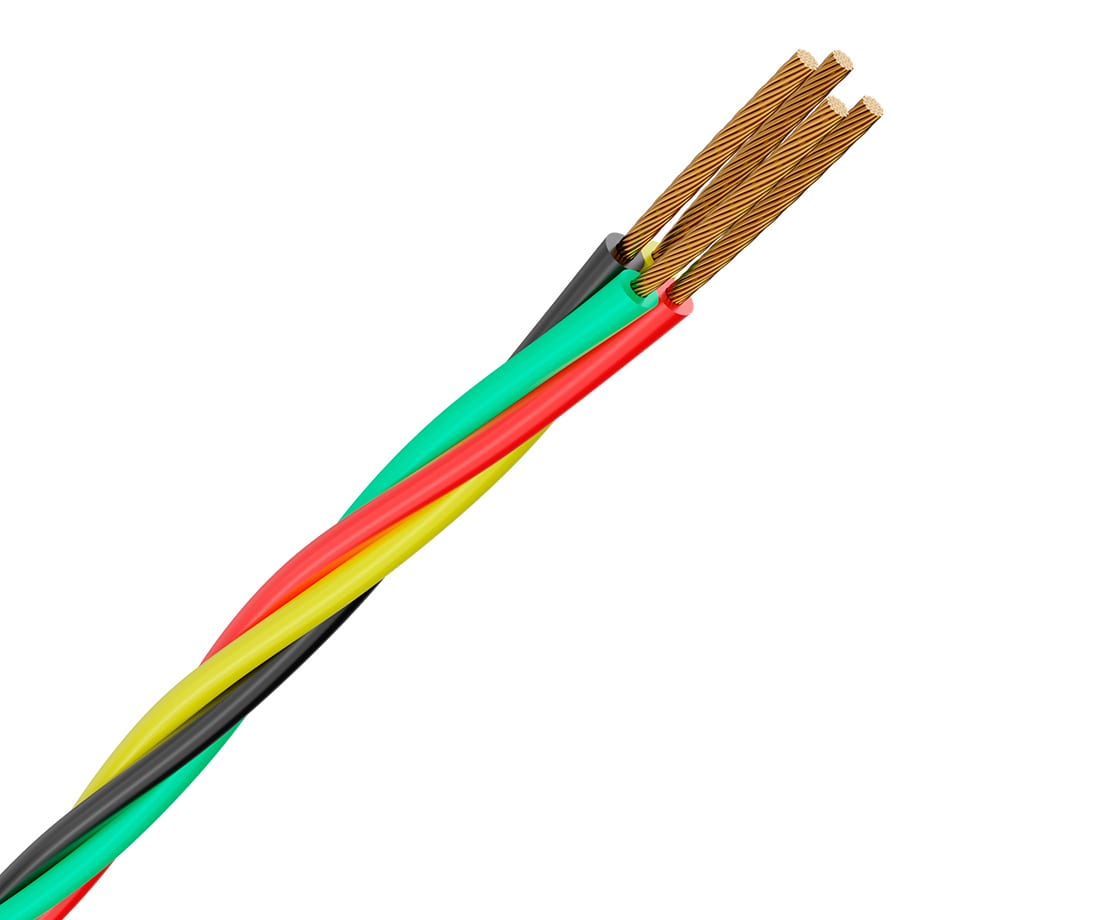

Multi-Color Twist

For use within well casing supplying power to the submersible pump. Maximum conductor operating temperatures of –25 C and is sunlight resistant.

Construction

  • Conductor: Solid or Stranded soft annealed copper
  • Insulation: Thermoplastic polyvinyl chloride (PVC)
  • Color Coding: black, red, yellow, green (ground)
  • Assembly: The individually insulated conductors are twisted with a green insulated grounding conductor and without an overall jacket
  • Temperature: 75º C
  • Voltage: 600 Volts
DOWNLOAD PDF

ConductorReels
Size (AWG)StrandingNumber of ConductorsPart NumbersApprox. Ship Wt./MFTInsulation Inner Thickness
(Inches)
Outside Dimensions (Inches)500'1000'
Conductor
Size (AWG)
14
Stranding
Solid
Number of Conductors
2 w/ #14 Ground
Part Numbers
PCT14/2G
Approx. Ship Wt./MFT
65
Insulation Inner Thickness (Inches)
0.045
Outside Dimensions (Inches)
0.341
Reels
500'
RW12-2
1000'
RW15-2
Conductor
Size (AWG)
14
Stranding
Solid
Number of Conductors
3 w/ #14 Ground
Part Numbers
PCT14/3G
Approx. Ship Wt./MFT
87
Insulation Inner Thickness (Inches)
0.045
Outside Dimensions (Inches)
0.382
Reels
500'
RW15-2
1000'
RW17
Conductor
Size (AWG)
12
Stranding
Solid
Number of Conductors
2 w/ #12 Ground
Part Numbers
PCT12/2G
Approx. Ship Wt./MFT
92
Insulation Inner Thickness (Inches)
0.045
Outside Dimensions (Inches)
0.378
Reels
500'
RW15-2
1000'
RW15-2
Conductor
Size (AWG)
12
Stranding
Solid
Number of Conductors
3 w/ #12 Ground
Part Numbers
PCT12/3G
Approx. Ship Wt./MFT
122
Insulation Inner Thickness (Inches)
0.045
Outside Dimensions (Inches)
0.424
Reels
500'
RW15-2
1000'
RW17
Conductor
Size (AWG)
10
Stranding
Solid
Number of Conductors
2 w/ #10 Ground
Part Numbers
PCT10/2G
Approx. Ship Wt./MFT
132
Insulation Inner Thickness (Inches)
0.045
Outside Dimensions (Inches)
0.423
Reels
500'
RW15-2
1000'
RW17
Conductor
Size (AWG)
10
Stranding
Solid
Number of Conductors
3 w/ #10 Ground
Part Numbers
PCT10/3G
Approx. Ship Wt./MFT
176
Insulation Inner Thickness (Inches)
0.045
Outside Dimensions (Inches)
0.474
Reels
500'
RW15-2
1000'
RW17
Conductor
Size (AWG)
8
Stranding
19
Number of Conductors
3 w/ #10 Ground
Part Numbers
PCT08/3G
Approx. Ship Wt./MFT
266
Insulation Inner Thickness (Inches)
0.060
Outside Dimensions (Inches)
0.611
Reels
500'
RW23
1000'
RW24
Conductor
Size (AWG)
6
Stranding
19
Number of Conductors
3 w/ #8 Ground
Part Numbers
PCT04/3G
Approx. Ship Wt./MFT
398
Insulation Inner Thickness (Inches)
0.060
Outside Dimensions (Inches)
0.721
Reels
500'
RW23
1000'
RW27
Conductor
Size (AWG)
4
Stranding
19
Number of Conductors
3 w/ #8 Ground
Part Numbers
PCT04/3G
Approx. Ship Wt./MFT
558
Insulation Inner Thickness (Inches)
0.060
Outside Dimensions (Inches)
0.813
Reels
500'
RW27
1000'
RW32
Conductor
Size (AWG)
12
Stranding
Solid
Number of Conductors
3 w/o Ground
Part Numbers
PCT12/3
Approx. Ship Wt./MFT
92
Insulation Inner Thickness (Inches)
0.045
Outside Dimensions (Inches)
0.378
Reels
500'
RW15-2
1000'
RW15-2
Conductor
Size (AWG)
10
Stranding
Solid
Number of Conductors
3 w/o Ground
Part Numbers
PCT10/3
Approx. Ship Wt./MFT
132
Insulation Inner Thickness (Inches)
0.045
Outside Dimensions (Inches)
0.423
Reels
500'
RW15-2
1000'
RW17
