Toro® Communication Cable

R7162D

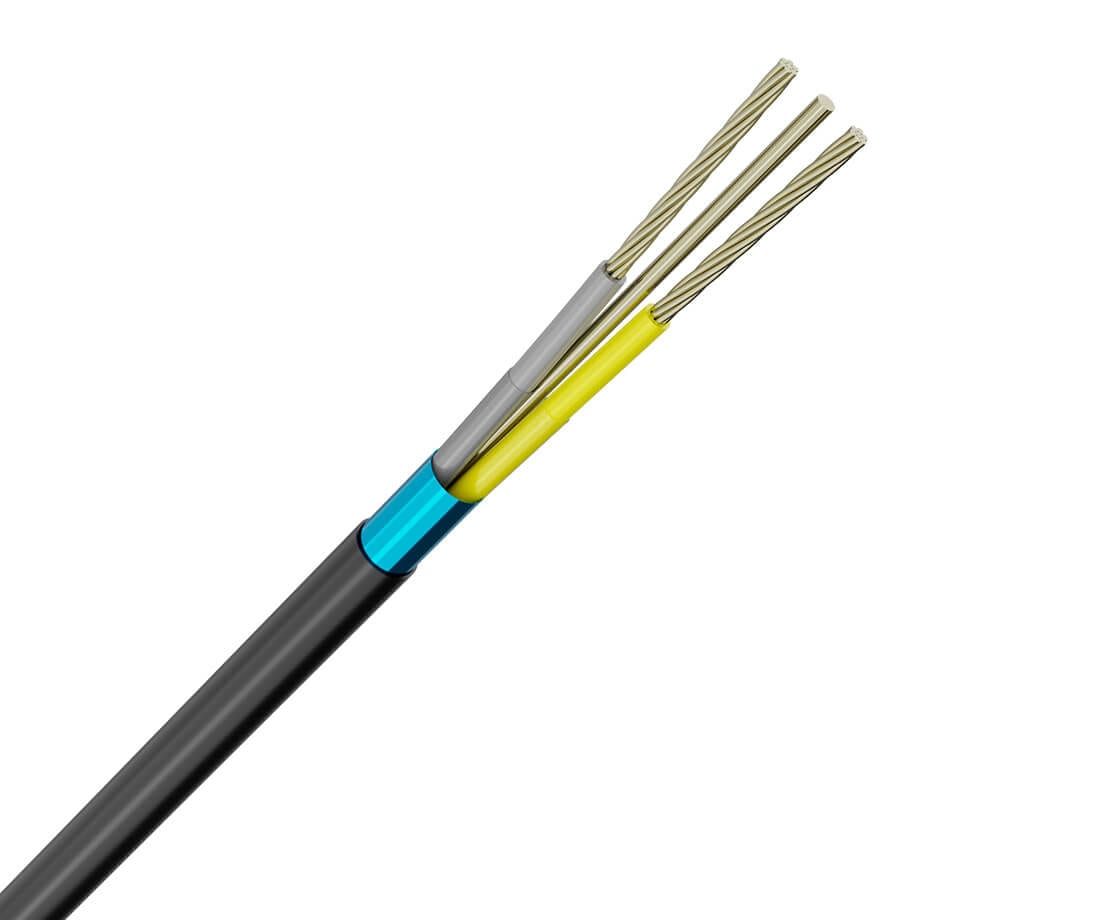

Regency’s Toro Communication Cable is manufactured for direct burial application of Toro’s golf course sprinkler systems. Conductor construction is tin coated, soft drawn bare copper meeting the requirements of ASTM Specification 33.

The two conductors shall be insulated with a high quality Polyvinylchloride (PVC) covered with a clear nylon sheath for system applications up to 600 volts. One conductor will be insulated yellow and the other conductor insulated gray.

The insulated conductors are cabled with fillers to ensure roundness. A 2 mil aluminum backed polyester shielding with a 16 awg solid tinned copper drain wire in contact with the aluminum side is applied. The shield has a 25% minimum overlap.

A polyethylene (PE) jacket covers the assembly and is sunlight resistant.

Toro Communication Cable is constructed in accordance with Underwriters Laboratories, Inc.

Construction

  • Conductor: Soft drawn bare copper (ASTM Spec. B-3). Solid (22 awg)
  • Inner Jacket: Polyethylene (PE)
  • Outer Jacket: Polyethylene (PE)
  • Temperature: 60º C
  • Resistance: 17.235 OHMS PER M FEET at 68 DEG. F
DOWNLOAD PDF

Size (AWG)StrandingInsulation Thickness (Inches)Outer Jacket (Inches)
Conductor
Size (AWG)
16
Stranding
7
Insulation Thickness (Inches)
0.015
Outer Jacket (Inches)
0.045
