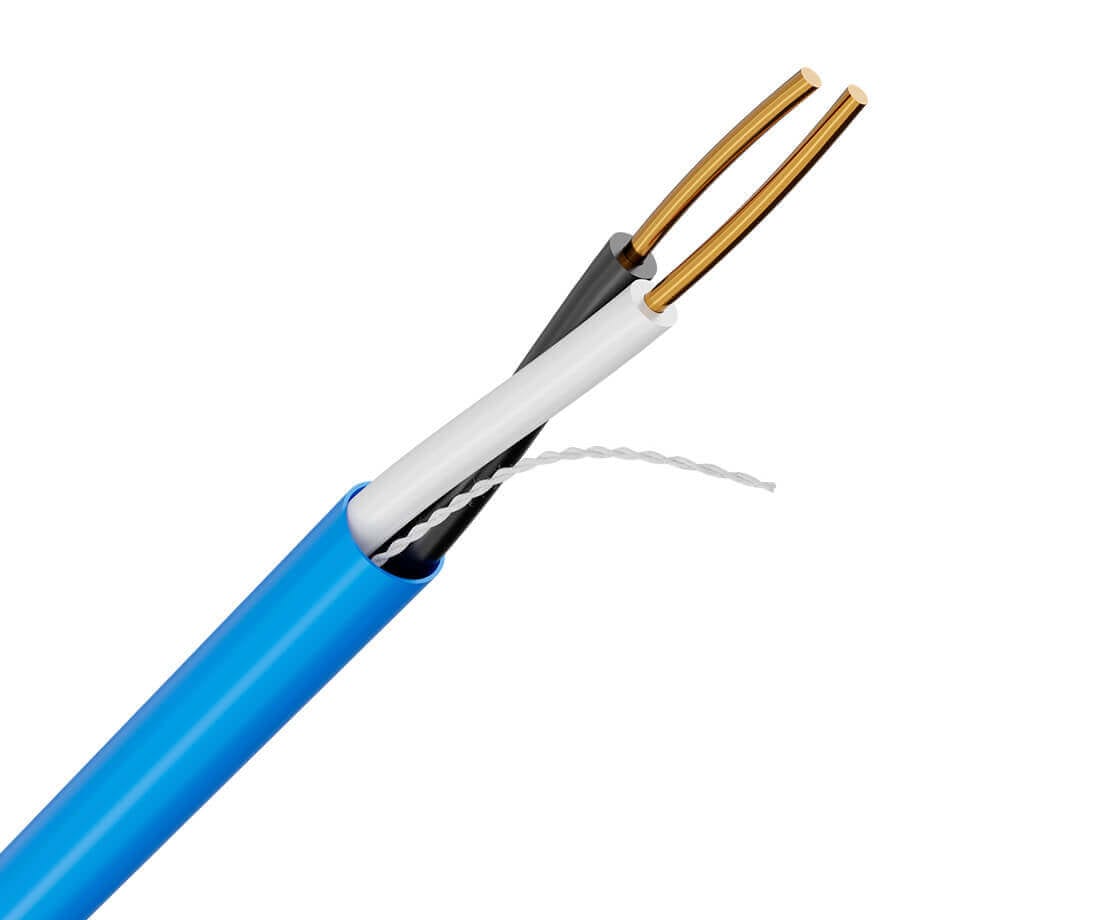

Toro® GDC Decoder Cable

R7350D

Regency’s Toro® GDC Cable is manufactured for the control of Toro’s™ decoder systems. It is direct burial rated.

Conductor construction is soft drawn bare copper meeting the requirements of ASTM Specification B-3. Toro™ GDC Decoder Cable features solid copper conductors.

The two conductors shall be insulated with a low density, high molecular weight polyethylene (PE). One conductor will be insulated black and the other conductor insulated white. The two conductors are twisted with a 4” lay and rated for systems applications up to 600 volts.

The two twisted conductors shall be extruded with a high density, sunlight resistant polyethylene (HDPE) jacket. A Mylar tape is formed around the conductors for the purpose of separating the conductors from the jacket. The jacket comes in a variety of colors to accommodate easy identification. Comes with pull cord for easy stripping.

Toro™ GDC Decoder Cable is constructed in accordance with Underwriters Laboratories, Inc.

Construction

  • Conductor: Soft drawn bare copper (ASTM Spec. B-3). Two (2) conductors. Solid (14-12 awg)
  • Insulation: Polyethylene (PE)
  • Outer Jacket: High Density Polyethylene (HDPE)
  • Temperature: 60º C
  • Voltage: 600 volts
DOWNLOAD PDF

Size (AWG)Insulation Thickness (Inches)
Conductor
Size (AWG)
14
Insulation Thickness (Inches)
0.045
