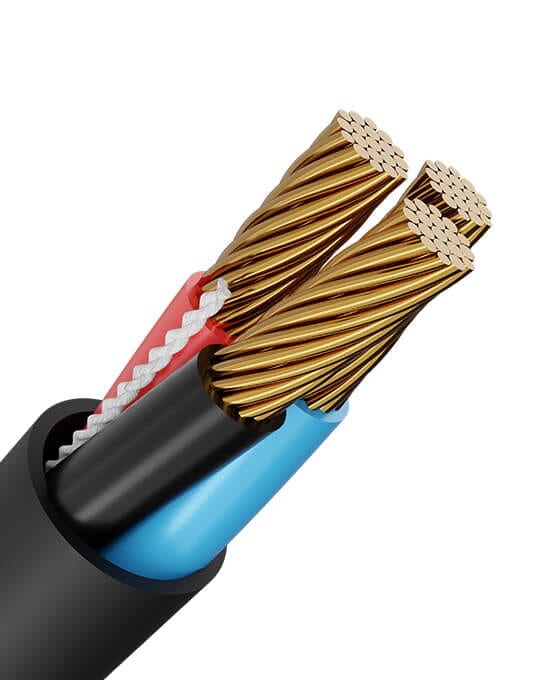

Tray Cable 14 AWG-10 AWG

R7266D

Type TC-ER Control Cable is intended for use in accordance with Article 336 of ANSI/NFPA 70 National Electrical Code. It is suitable for use in wire ways, trays, channels, conduit and ducts. It is UL Listed for direct burial in wet or dry locations, sunlight resistant and available as Exposed run (ER) for use between cable trays and utilization equipment, and Joist Pull (JP) applications in accordance with NEC 336.10 (7).

Standards & Specifications

  • 14 AWG thru 10 AWG soft annealed, bare copper per ASTM B3 & ASTM-B787
  • UL 83
  • Flame retardant insulation
  • PVC Rated for use at 90º C dry
  • PVC Rated for use at 75º C wet
  • Gasoline & Oil Resistant II
  • Color coded per method ICEA Method M-1
  • E-2 insulated conductors are twisted together
  • ARRA 2009 Section 1605 “Buy American” Compliant
DOWNLOAD PDF

Wire Size & Specs

Conductor
Size (AWG)StrandingNo. of ConductorsIndividual Conductor
Stranding
Jacket Thickness
PVC (Inches)
Nom. OD (Inches)Approx Net WT./MFT
Conductor
Size (AWG)
14
Stranding
19
No. of Conductors
2 Flat
Individual Conductor Stranding
19
Jacket Thickness PVC (Inches)
0.045
Nom. OD (Inches)
N/A
Approx Net WT./MFT
55
Conductor
Size (AWG)
14
Stranding
19
No. of Conductors
3
Individual Conductor Stranding
19
Jacket Thickness PVC (Inches)
0.045
Nom. OD (Inches)
N/A
Approx Net WT./MFT
72
Conductor
Size (AWG)
14
Stranding
19
No. of Conductors
4
Individual Conductor Stranding
19
Jacket Thickness PVC (Inches)
0.045
Nom. OD (Inches)
N/A
Approx Net WT./MFT
94
Conductor
Size (AWG)
14
Stranding
19
No. of Conductors
5
Individual Conductor Stranding
19
Jacket Thickness PVC (Inches)
0.045
Nom. OD (Inches)
N/A
Approx Net WT./MFT
116
Conductor
Size (AWG)
14
Stranding
19
No. of Conductors
7
Individual Conductor Stranding
19
Jacket Thickness PVC (Inches)
0.045
Nom. OD (Inches)
N/A
Approx Net WT./MFT
147
Conductor
Size (AWG)
12
Stranding
19
No. of Conductors
2 Flat
Individual Conductor Stranding
19
Jacket Thickness PVC (Inches)
0.045
Nom. OD (Inches)
N/A
Approx Net WT./MFT
74
Conductor
Size (AWG)
12
Stranding
19
No. of Conductors
3
Individual Conductor Stranding
19
Jacket Thickness PVC (Inches)
0.045
Nom. OD (Inches)
N/A
Approx Net WT./MFT
102
Conductor
Size (AWG)
12
Stranding
19
No. of Conductors
3 BWG
Individual Conductor Stranding
19
Jacket Thickness PVC (Inches)
0.045
Nom. OD (Inches)
N/A
Approx Net WT./MFT
102
Conductor
Size (AWG)
12
Stranding
19
No. of Conductors
4
Individual Conductor Stranding
19
Jacket Thickness PVC (Inches)
0.045
Nom. OD (Inches)
N/A
Approx Net WT./MFT
131
Conductor
Size (AWG)
12
Stranding
19
No. of Conductors
5
Individual Conductor Stranding
19
Jacket Thickness PVC (Inches)
0.045
Nom. OD (Inches)
N/A
Approx Net WT./MFT
162
Conductor
Size (AWG)
12
Stranding
19
No. of Conductors
7
Individual Conductor Stranding
19
Jacket Thickness PVC (Inches)
0.045
Nom. OD (Inches)
N/A
Approx Net WT./MFT
231
Conductor
Size (AWG)
10
Stranding
19
No. of Conductors
2 Flat
Individual Conductor Stranding
19
Jacket Thickness PVC (Inches)
0.045
Nom. OD (Inches)
N/A
Approx Net WT./MFT
109
Conductor
Size (AWG)
10
Stranding
19
No. of Conductors
3
Individual Conductor Stranding
19
Jacket Thickness PVC (Inches)
0.045
Nom. OD (Inches)
N/A
Approx Net WT./MFT
154
Conductor
Size (AWG)
10
Stranding
19
No. of Conductors
3 BWG
Individual Conductor Stranding
19
Jacket Thickness PVC (Inches)
0.045
Nom. OD (Inches)
N/A
Approx Net WT./MFT
154
*ER rating only applies to 3 or more insulated conductors. Not applicable to conductor items.
**Conductors are Black, White, and Green.
